Tiny Link Clamp
Lever Clamp, hydraulic, 230 bar, double acting
This link clamp generates high clamping forces with very small dimensions. In addition, it is characterized by a low interfering contours with a high component insertion freedom.
- High force generation
- Very compact design
- Clamping point adjustable

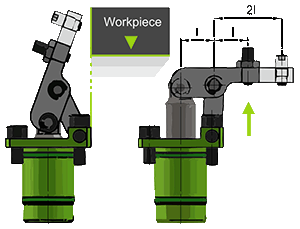

- Lever ratio 1:1 with Standard-Lever
- No interfering contour = absolute insertion freedom
- Insensitive to hot chips
- With optional pneumatic detection
Data Sheet
3D files
Body | Lever-Short | Lever-Long | Lever-Blank |
| ITLC14-001 | ITLC14L-001 | ITLC14L-002 | 2012005 |
| ITLC16-001 | ITLC16L-001 | ITLC16L-002 | 2012006 |
| ITLC22-001 | ITLC22L-001 | ITLC22L-002 | 2012007 |
| ITLC28-001 | ITLC28L-001 | ITLC28L-002 | 2022005 |
| ITLC32-001 | ITLC32L-001 | ITLC32L-002 | 2012009 |
